HVC1205B0 is a compact, safe, low-leakage, and electrically stable integrated X-ray source. It supports continuous operation at 500W within the specified temperature range, with a maximum output voltage of 120kV/500W. The system comprises a control box and a high-voltage oil tank, and it is managed via RS232 interface for control, monitoring, and firmware updates.
Food testing, industrial non-destructive, security application and other fields
| Item | Specification |
| Input voltage | 230VAC±10%, 50/60Hz, 4.2Amps |
| Output power of X ray tube | Max continuous output power 500W（100kV/5mA or 120kV/4.1mA） |
| Output voltage | Rated output voltage：Continuously adjustable voltage range 30kV—120kV |
| Output voltage ripple：±0.5%（peak to peak） | |
| Output voltage accuracy：±2% of voltage setting value | |
| line regulation：±0.1% | |
| load regulation：±0.1% | |
| Tube current | Rated tube current：Continuously adjustable current range 0.2mA-5.0mA |
| Tube current accuracy：±0.2mA of current setting value | |
| line regulation：±0.1% | |
| load regulation：±0.1% | |
| Rise time of output voltage | The kV rise time is <0.6 Sec at maximum power |
| The kV rise time is <0.1 Sec at low voltage ( < 40kV ) | |
| Filament power supply: | input voltage：24VDC |
| filament voltage：3.7Vac | |
| filament：3.0 to 3.5 Amps RMS | |
| preheating time：3sec | |
| Tube feature | Tube type：fixed anode、glass envelope、tungsten target |
| focus：0.8mm | |
| inherent filtration：0.8mm Be，0.7mm AI | |
| radiation angle：80°×16° fan beam | |
| target angle：25° | |
| Cooling | transformer oil，external circulation，external forced air cooling |
| Working temperatures | -10℃—40℃ |
| Storing temperature | -20℃—60℃ |
| System temperature protection | 60±3℃ of oil temperature |
| Humidness | 98%，Non-condensation |
| Weight | Oil tank：28.5kg |
| Control Unit：3.8kg | |
| Installation direction | Installation in any direction |
| Radiation angle | 16°×80° |
| X-ray leakage | Less than 0.5mR/hr at 5cm from the surface of the HVC1205B0. |
JB1/AC~(AC Input Power Connector)
| Pin | Signal | Parameter |
| 1 | L | live wire |
| 2 | N | Neutral line |
| 3 | G | PE |
JB2/COM (DMR-9S interface definitions)
| Pin | Signal | Parameter |
| 1.4.6.7.8.9 | N/C | No connect |
| 2 | TXD | Data transmit |
| 3 | RXD | Data receive |
| 5 | GND | Signal gnd |
JB3/Interlock,(DMR-9P interface definitions)
| Pin | Signal | Parameter |
| 3/4/5/6/7/8/9 | N/C | No connect |
| 1 | Interlock Out | |
| 2 | Interlock In |
Short connect pin1 and pin2 make X ray source normal operation. Typical connection：
Led indicator:
| ID | Color | Meaning |
| XrayOn | Yellow | indicate X ray on |
| ARC | Red | Arcing in oil tank |
| OT | Red | Over temperature |
| EP_Err | Red | Tube voltage error |
| IP_Err | Red | Tube current error |
| Power | Green | Power on |

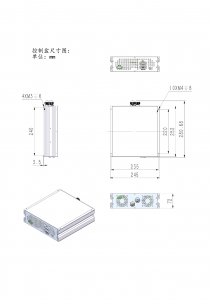

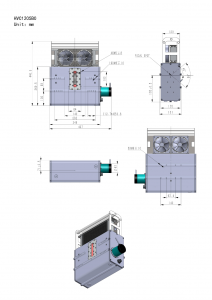

Tank size
