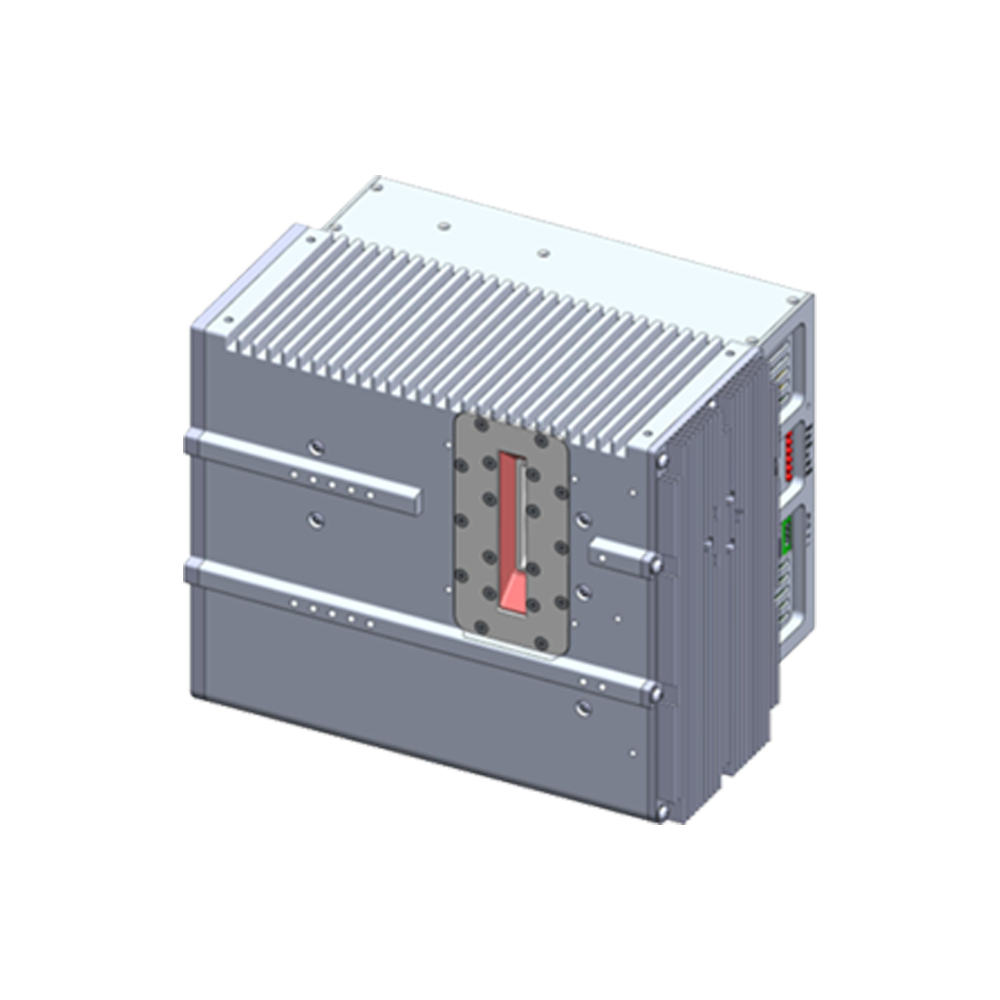

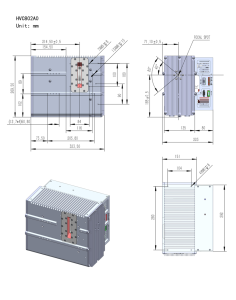

HVC802A0 X-Ray Source

Key Features:

Integrated design with high electrical integration and a compact appearance
Capable of continuous, uninterrupted operation for extended periods
High stability
Can be installed in any orientation
Standard digital interface RS232, easy to use

Product Details

The HVC802A0 X-Ray Source is an exceptionally compact, portable, and reliable line of high voltage X-ray generators. Using in allowable operating ambient temperature, it is capable to self-heat dissipate up to 100W continuous with no additional cooling. The X-ray generator integrates the high voltage inverter, filament supply, X-ray tube and X-ray housing into one unit. The High Voltage X-ray Unit is an 80kV/100W, High Frequency, self-cooled, self-protected & self-contained X-ray generator. It consists of an X-ray tank, and a control box. The Generator is controlled, programmed and monitored via a standard RS232 interface.

Application:

Food testing, industrial non-destructive testing, dangerous goods testing and other fields, mostly used for simple X-ray machines or mobile X-ray testing equipment

Specification:

Item	Specification
Input voltage	230VAC±10%, 50/60Hz, 1.2Amps
Output power of X ray tube	Max continuous output power 100W（80kV/1.25mA,40kv/2.5mA）
Output voltage	Rated output voltage：Continuously adjustable voltage range 20kV—80kV
	Output voltage ripple：±0.5%（peak to peak）
	Output voltage accuracy：±1% of voltage setting value
	line regulation：±0.1%
	load regulation：±0.1%
Tube current	Rated tube current：Continuously adjustable current range 0.2mA-2.5mA
	Tube current accuracy：±1% mA of current setting value
	line regulation：±0.5%
	load regulation：±0.5%
Rise time of output voltage	The kV rise time is <0.4 Sec from 10% to 90% of the output voltage.
Filament power supply:	input voltage：24VDC
	filament voltage：2.0 to 3Vac
	Filament current：3.0 to 3.5 Amps RMS
	preheating time：3sec
Tube feature	Tube type： fixed anode, glass window, tungsten target
	focus：0.8mm
	inherent filtration：0.8mm Be，0.7mm AI
	radiation angle：80°*16° fan beam
	target angle：25°
Cooling	transformer oil，natural air cooling
Working temperatures	-10℃—40℃
Storing temperature	-20℃—60℃
System temperature protection	60°C ± 3°C of Oil temperature:
Humidness	98%，Non-condensation
Weight	23kg
Installation direction	Installation in any direction
Radiation angle	16°×80°
X-ray leakage	Less than 0.5mR/hr at 5cm from the surface of the HVC802A0.

JB1/AC~(AC Input Power Connector)

Pin	Signal	Parameter
1	L	live wire
2	N	Neutral line
3	G	PE

JB2/COM (DMR-9S interface definitions)

Pin	Signal	Parameter
1.4.6.7.8.9	N/C	No connect
2	TXD	Data transmit
3	RXD	Data receive
5	GND	Signal gnd

JB3/Interlock,(DMR-9P interface definitions)

Pin	Signal	Parameter
3/4/5/6/7/8/9	N/C	No connect
1	Interlock Out
2	Interlock In

Short connect pin1 and pin2 make X ray source normal operation. Typical connection：

Led indicator

ID	Color	Meaning
XrayOn	Yellow	indicate X ray on
ARC	Red	Arcing in oil tank
OT	Red	Over temperature
EP_Err	Red	Tube voltage error
IP_Err	Red	Tube current error
Power	Green	Power on
